Summa F Series Pro Flatbed Cutters

SignEquip is pleased to announce that Summa F Series Pro Flatbed Cutting Systems are now available.  Their versatility introduces a new age in cutting plotters.  One machine covers countless possibilities.  Now you can be ready to fill almost any order and branch out into new markets.  This versatile, new cutter provides myriad cash flow opportunities for your business.  Call SignEquip to order.


Click on the start arrow to watch this video


contact us...



This brand new line of Summa F Series Pro Flatbed Cutting Systems is the result of a quarter century of expertise building the world's finest cutting plotters.  These advanced flatbed cutters are designed to cut rigid and sheet materials, as well as roll stock.  Up to three tools can be inserted at one time into the multi-module tool holder.  Changing tools is fast and easy thanks to the innovative single-point fastening system.  Automatic tool recognition, combined with digital and mechanical depth and pressure control, ensures precision cutting on a vast array of materials.


Click on image for larger view.

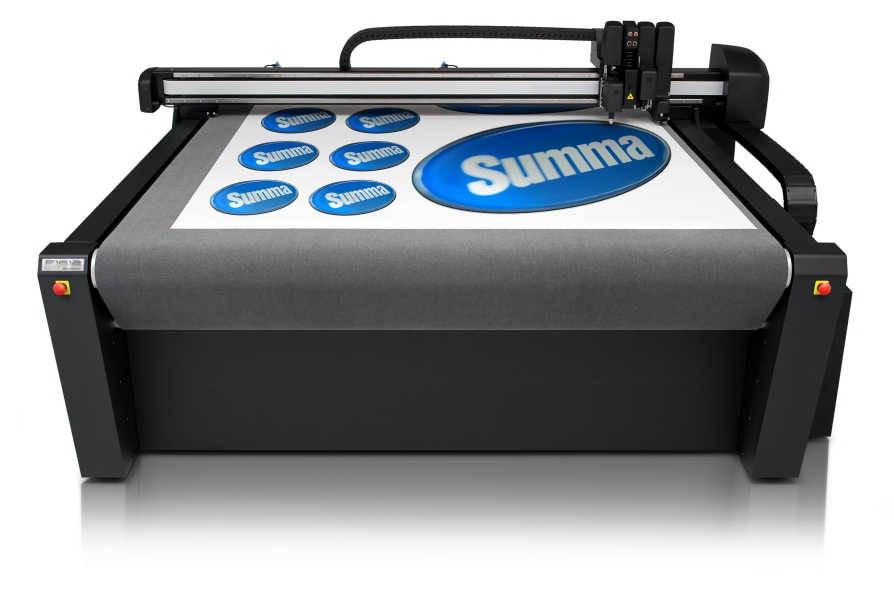

Summa F1612 Flatbed Cutting Table
(Basic Unit)

$Call for Pricing 1-877-900-3344
Shipping & handling not included.
Click here to see what's in the box...

A Multifunction Head holds up to three modules at one time. The central unit houses a positioning laser and integrated camera system for hast and accurate registration mark recognition while contour cutting.

Pneumatically driven Media Advance Clamps hold the material down while pulling it forward in order to work continuously in panels or multiple jobs.

 The Vacuum Pump with sound absorber holds the material in place during the job while the Selector adjusts the vacuum automatically to match the working area.

The F Series Flatbed Cutter basic unit comes equipped with a drag knife module and Summa's revolutionary optical camera marker recognition system for unbeatable contour cutting accuracy.  Multiple material handling options ensure optimal efficiency, whether cutting printed flexible or rigid substrates. An ever increasing arsenal of optional add-ons further expand the capabilities of the F Series, allowing for a custom tailored machine to fit your specific workflow needs.


Modules

The Tangential Module is the most powerful and most flexible module: it offers a vertical force of 12 kg and corresponds to a whole range of matching tools. Each tool has its own barcode ID that ensures automatic recognition and parameter setting. For each application, an appropriate tool can be installed on the tangential module.

The Drag Module is a super fast module for making notations with pens or kiss-cutting a wide range of materials with a pressure of 600 gr. using a drag knife.



Tools

The Kiss Cutting tool is able to kiss-cut the most demanding roll-material with the highest accuracy.

The Cutout tools are able to cut through: the Single Edge Cutout tool is appropriate for most detailed cutting (eg. in vinyls, thin cardboard…). The Double edge cutout tool ensures minimal wear while cutting in tough materials (eg. magnetic, textile…) and the Heavy Duty cutout tool is suitable for thicker materials (eg. softboard, carpet…)

The Medium and Large Creasing Wheels make folds in a variety of cardboards.

Safety Pack

The Safety Pack assures maximum security. A laser-beam system surrounds the table and controls the area. The unit can work with full power in production mode, while when put into safety mode, machine settings can be securely adjusted.



Model

F1612

Dimensions

92.5 x 76.3 x 43.3 IN (235 x 194 x 110 CM) - WITHOUT ROLL SUPPORT

Media Width

UP TO 65 IN (165 CM)

Cutting Area

63 IN WIDE x 47.2 IN LONG (160 CM WIDE x 120 CM LONG)
UP TO 164 FT (50 M) LONG IN MULTI PANEL

Repeatability

WITHIN +/- 0.05 MM ON PLOTS

Accuracy

0.05% OF MOVE OR 0.05 MM, WHICHEVER IS GREATER

Speed

UP to 39.4 IN (1000 MM) /SEC

Acceleration

UP TO 1 G

Maximum Allowed Forces

VERTICAL: 200 NEWTON
HORIZONTAL: 200 NEWTON

Connectivity

USB 2.0

Power Requirements

3 PHASE 400V+N OR 3 PHASE 230V OR 3 PHASE 208V+N

Basic Model Includes:

  • Vacuum Pump - 1.3 kW, sound absorber, switching valve

  • Safety System - Four corner pole light beam shutoff system

  • Optical Registration - OPOSCAM onboard optical camera system

  • Axis Control - Table control software (best used with touchscreen display)

  • Remote Control - Hand held with charger and USB Bluetooth adaptor

  • Cutting Module - Drag Head with 600 gram cutting force

Are you ready to generate massive cash flow?  Your business will be transformed when you place the Summa F Series Flatbed Cutting Table in your shop!  Take advantage of this opportunity to own the most versatile cutter ever.  Need more info?  We're as close as your email or telephone.  Real people answer our phones, and we love to help you before and after your purchase.  We're with you every step of the way.  For one-step service call SignEquip; we'll answer your questions, and you can place your order over the phone.
