SawTrax Signmaking Vertical Panel Saw/Mat Cutter

SawTrax Sign Maker's Vertical Panel Saw and Mat Cutter Combo machines
cut a variety of materials from MDO board, plastics, thin sheets of aluminum, Dibond, Foam-cor, Sintra PVC, acrylics, Gatorfoam, Lexan, NuAlum, White Wood Smooth, AlumaCorr, Poly-Metal, Signabond, Coroplast, Corex, and more!  What's more,  you can cut them all on one machine!  It's no longer necessary to buy a panel saw and a mat cutter.  Save time and money by buying only one machine to do both jobs!  New Lower Prices on some packages!  Contact SignEquip now for more info and pricing.




contact us...



NEW IMPROVEMENTS

  1. Spinning Insert: Improved pin locating system eliminates any misaligning of the saw during rotation


  2. Dust Brush: A longer bristled brush on the 7.25" saws allows for better dust pick up when cutting thinner (3mm or 1/8") materials


  3. Rolling ACM (Dibond) Shear: Rolling blade rolls edges for a smooth finish - no filing necessary!



FEATURES & BENEFITS

  1. Accu-Glide sealed bearing system provides an easy and precise carriage pull


  2. Does not require backer board


  3. Knife cross cuts and rip cuts


  4. Knife blade retracts for safe removal


  5. Carbide Tip saw blade


  6. Saw Blade viewable to align with cut mark


  7. Saw Blade is guarded when machine is off


  8. Uses low cost 7-1/4" saw blades, which can be sourced anywhere


  9. Tool-less saw blade changes - so quick and easy


  10. Blade/arbor lock for easy saw blade changes


  11. Blade angle can be changed to score material


  12. Blade angle can be changed to bevel cut material


  13. The folding stand folds from the front like a ladder


  14. Requires only one person to unfold stand


  15. Stand has no holes to align or pins to lose


  16. Stand has steel brackets welded to steel tubes to form the legs - not two pieces of angle iron U-bolted to a frame like other panel saws


  17. Larger 5" wheels are included on the frame for easy movement


  18. Wheels are off the ground while saw is in use, so saw cannot roll away on you


  19. Spring Hold Down for holding thin sheets in place


  20. Stop, Strip Bar, and Measuring Tapes for fast set-up and repetitive cuts


  21. Dual Rip Gauge Pointers and Tapes can be used to set rip widths from either direction


  22. Steel Guide Tubes with nickel chrome plating, instead of zinc as in other panel saws


  23. Many optional extras available, such as Dust Hook Up, Hose, and Dust Brush...

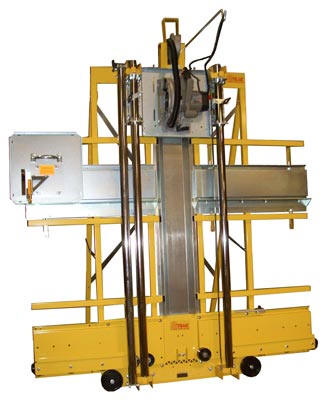

Compact Model

Compact models come in two sizes, 52" and 64" cross cuts. These models are perfect for space restricted shops, or if portability is required. They have the same cutting capabilities as the Full Size models.  Because of the size frame, they can be easily moved.  The only limitation is that, unlike the Full Size frames, they do not fully support the material to be cut.  The Compact model above is shown with an optional Mid Fence.  Since there are many optional extras available to customize your SawTrax Compact Panel Saw for your requirements, call SignEquip to get your quote.


contact us...

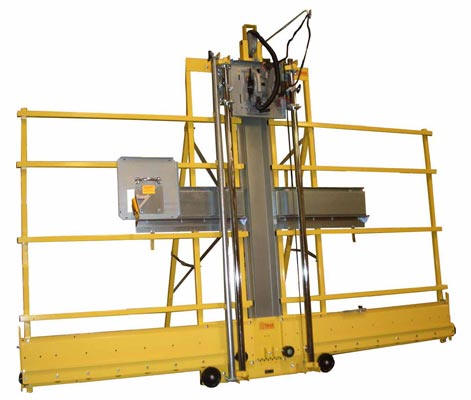

Full Size Model

Full Size machines handle full size sheets without the "teetering" that can occur with the compact machines. The Full Size 64 illustrated above can easily handle a 5 by 10 foot sheet. It uses 18 material support rollers that glide your material into place to be cut. This model is available in 52", 64", 76", 88", and 100" cross cuts. The Full Size model is shown above with an optional Mid Fence.  Since there are many optional extras available to customize your SawTrax  Full Size Panel Saw for your requirements, call SignEquip to get your quote.

With SawTrax Sign Maker's Vertical Panel Saw and Mat Cutter Combo machines you get quality engineering, accuracy, durability, dependability, and ease of use.  These amazing machines give you an excellent return on you investment.  SawTrax owners are happy, successful owners.

Need more info? We're as close as your email or telephone. Real people answer our phones, and we love to help you.  We're with you every step of the way.  For one-step service call SignEquip; we'll answer your questions, and you can place your order over the phone.







contact us...
