Summa S2 Class D Series Vinyl Cutters

The superior new Summa S2 Class D Series combines S2 Class power and precision with an affordable and efficient drag-knife cutting head. The powerful servomotors and Summa's MicroSprocket™ drive let you cut with amazing speed, confidence, and precision. Summa's tracking is legendary in the industry. You'll also get an unbelievable number of new innovations and built-in capabilities. Summa S2 Class challenges any other vinyl cutter in its class, and comes out a winner. If you want the best drag-knife cutter the industry has to offer, check out the selection below. Then contact SignEquip now to order the Summa S2 Class D Series cutter of your choice.

*Please Note: Due to the volatility of the Canadian Dollar, prices are subject to change without notice.  Please contact us for your price quote.


Summa S2-75 (30")
D Series™
$7,497 CAD


Specifications

Summa S2-75

TYPE 75 cm (30 in.) drag-knife, friction feed
SPEED Up to 1000 mm/sec. (40 in./sec.) axial;
Up to 1414 mm/sec. (56 in./sec) diagonal
ACCELERATION Up to 4 g axial;
Up to 5.5 g diagonal
KNIFE PRESSURE 0-400 grams, in 5-gram increments
ADDRESSABLE
RESOLUTION
0.025 mm, 0.1 mm selectable (Metric);
0.001 in., 0.005 in. selectable (English)
REPEATABILITY Within +/- 0.1 mm (0.004 in.) on plots up to 12 m (40 ft.) long
TOOL COMPATIBILITY Standard knife for vinyl, reflective and fluorescent films;
Thick material knife for sandblast resist and other thick films;
Pen for plotting on paper;
Pounce tool for pouncing on paper
MEDIA WIDTHS 6 to 84 cm (2.4 to 33 in.)
MEDIA LENGTH 50 m (164 ft.) maximum
MEDIA THICKNESS Up to 0.25 mm (0.01 in.) with standard knife;
Up to 0.8 mm (0.03 in.) with thick material knife
CUTTING AREA 74.2 cm x 50 m (29.2 in. x 164 ft.) maximum
MEMORY 16 MB
INTERFACE Ethernet and USB
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish
CUTTER LANGUAGES Summa DM/PL, HP-GL or HP-GL2 (with selectable origin ; HP7475 and HP 7580/7585)
POWER
REQUIREMENTS
100-240 Vac, 48-62 Hz, 85 VA maximum
OPERATING
ENVIRONMENT
15° to 35° Celsius (59° to 95° Fahrenheit);
35 to 80% relative humidity (non-condensing)
DIMENSIONS (W x D x H) 141 x 68 x 111 cm (55.5 x 26.8 x 43.7 in.)
SHIPPING WEIGHT 69 kg (152 Lbs.)
ACCESSORIES
INCLUDED
2 standard knife blades
Standard blade holder
Fiber tip pen
Power cord
Serial interface cable (PC) and USB Cable (PC/Mac)
Quick start guide (English, French, German, Italian, Spanish and Dutch)
User's manual and drivers on CD-ROM
Summa Cutter Control™ software (for controlling cutter settings)
WinPlot™ (PC) and MacSign Cut (Mac) cutting programs

 contact us...

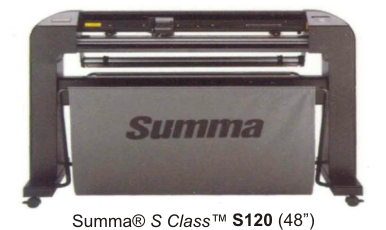

Summa S2-120 (48")
D Series™
$11,497 CAD


Specifications

Summa S2 120

TYPE 120 cm (48 in.) drag-knife, friction feed
SPEED Up to 1000 mm/sec. (40 in./sec.) axial;
Up to 1414 mm/sec. (56 in./sec) diagonal
ACCELERATION Up to 4 g axial;
Up to 5.5 g diagonal
KNIFE PRESSURE 0-400 grams, in 5-gram increments
ADDRESSABLE
RESOLUTION
0.025 mm, 0.1 mm selectable (Metric);
0.001 in., 0.005 in. selectable (English)
REPEATABILITY Vinyl =/< 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 12 m (40 ft.) long;
Vinyl > 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 4 m (13 ft.) long
TOOL COMPATIBILITY Standard knife for vinyl, reflective and fluorescent films;
Thick material knife for sandblast resist and other thick films;
Pen for plotting on paper;
Pounce tool for pouncing on paper
MEDIA WIDTHS 11.5 to 130 cm (4.5 to 51 in.)
MEDIA LENGTH 50 m (164 ft.) maximum
MEDIA THICKNESS Up to 0.25 mm (0.01 in.) with standard knife;
Up to 0.8 mm (0.03 in.) with thick material knife
CUTTING AREA 120 cm x 50 m (47.2 in. x 164 ft.) maximum
MEMORY 16 MB
INTERFACE Ethernet and USB
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish
CUTTER LANGUAGES

Summa DM/PL, HP-GL or HP-GL2 (with selectable origin ; HP7475 and HP 7580/7585)

POWER
REQUIREMENTS
100-240 Vac, 48-62 Hz, 85 VA maximum
OPERATING
ENVIRONMENT
15° to 35° Celsius (59° to 95° Fahrenheit);
35 to 80% relative humidity (non-condensing)
DIMENSIONS (W x D x H) 187 x 68 x 111 cm (73.6 x 26.8 x 43.7 in.)
SHIPPING WEIGHT 86 kg (190 Lbs.)
ACCESSORIES
INCLUDED
2 standard knife blades
Standard blade holder
Fiber tip pen
Power cord
Serial interface cable (PC) and USB Cable (PC/Mac)
Quick start guide (English, French, German, Italian, Spanish and Dutch)
User's manual and drivers on CD-ROM
Summa Cutter Control™ software (for controlling cutter settings)
WinPlot™ (PC) and MacSign Cut (Mac) cutting programs

contact us...




Summa S2-140 (54")
D Series
$14,497 CAD


Specifications

Summa S2 140

TYPE 140 cm (54 in.) drag-knife, friction feed
SPEED Up to 1000 mm/sec. (40 in./sec.) axial;
Up to 1414 mm/sec. (56 in./sec) diagonal
ACCELERATION Up to 4 g axial;
Up to 5.5 g diagonal
KNIFE PRESSURE 0-400 grams, in 5-gram increments
ADDRESSABLE
RESOLUTION
0.025 mm, 0.1 mm selectable (Metric);
0.001 in., 0.005 in. selectable (English)
REPEATABILITY Vinyl =/< 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 12 m (40 ft.) long;
Vinyl > 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 4 m (13 ft.) long
TOOL COMPATIBILITY Standard knife for vinyl, reflective and fluorescent films;
Thick material knife for sandblast resist and other thick films;
Pen for plotting on paper;
Pounce tool for pouncing on paper
MEDIA WIDTHS 17 to 145 cm (6.7 to 57 in.)
MEDIA LENGTH 50 m (164 ft.) maximum
MEDIA THICKNESS Up to 0.25 mm (0.01 in.) with standard knife;
Up to 0.8 mm (0.03 in.) with thick material knife
MEMORY 16 MB
INTERFACE Ethernet and USB
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish
CUTTER LANGUAGES

Summa DM/PL, HP-GL or HP-GL2 (with selectable origin ; HP7475 and HP 7580/7585)

POWER
REQUIREMENTS
100-240 Vac, 48-62 Hz, 85 VA maximum
OPERATING
ENVIRONMENT
15° to 35° Celsius (59° to 95° Fahrenheit);
35 to 80% relative humidity (non-condensing)
DIMENSIONS (W x D x H) 202 x 68 x 111 cm (79.5 x 26.8 x 43.7 in.)
SHIPPING WEIGHT 98 kg (214 Lbs.)
ACCESSORIES
INCLUDED
2 standard knife blades
Standard blade holder
Fiber tip pen
Power cord
Serial interface cable (PC) and USB Cable (PC/Mac)
Quick start guide (English, French, German, Italian, Spanish and Dutch)
User's manual and drivers on CD-ROM
Summa Cutter Control™ software (for controlling cutter settings)
WinPlot™ (PC) and MacSign Cut (Mac) cutting programs

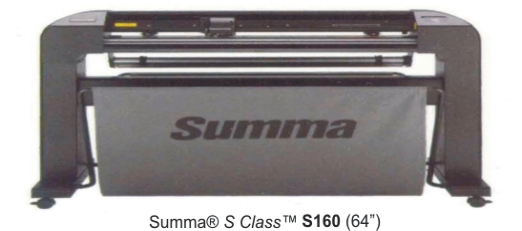

Summa S2-160 (64")
D Series™
$15,497 CAD


Specifications

Summa S2 160

TYPE 160 cm (64 in.) drag-knife, friction feed
SPEED Up to 1000 mm/sec. (40 in./sec.) axial;
Up to 1414 mm/sec. (56 in./sec) diagonal
ACCELERATION Up to 4 g axial;
Up to 5.5 g diagonal
KNIFE PRESSURE 0-400 grams, in 5-gram increments
ADDRESSABLE
RESOLUTION
0.025 mm, 0.1 mm selectable (Metric);
0.001 in., 0.005 in. selectable (English)
REPEATABILITY Vinyl =/< 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 12 m (40 ft.) long;
Vinyl > 76 cm (30"):
Within +/- 0.1 mm (0.004 in.) on plots up to 4 m (13 ft.) long
TOOL COMPATIBILITY Standard knife for vinyl, reflective and fluorescent films;
Thick material knife for sandblast resist and other thick films;
Pen for plotting on paper;
Pounce tool for pouncing on paper
MEDIA WIDTHS 17 to 168 cm (6.7 to 66 in.)
MEDIA LENGTH 50 m (164 ft.) maximum
MEDIA THICKNESS Up to 0.25 mm (0.01 in.) with standard knife;
Up to 0.8 mm (0.03 in.) with thick material knife
CUTTING AREA 158 cm x 50 m (62.2 in. x 164 ft.) maximum
MEMORY 16 MB
INTERFACE Ethernet and USB
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish
CUTTER LANGUAGES

Summa DM/PL, HP-GL or HP-GL2 (with selectable origin ; HP7475 and HP 7580/7585)

POWER
REQUIREMENTS
100-240 Vac, 48-62 Hz, 85 VA maximum
OPERATING
ENVIRONMENT
15° to 35° Celsius (59° to 95° Fahrenheit);
35 to 80% relative humidity (non-condensing)
DIMENSIONS (W x D x H) 225 x 68 x 111 cm (88.6 x 26.8 x 43.7 in.)
SHIPPING WEIGHT 114 kg (251 Lbs.)
ACCESSORIES
INCLUDED
2 standard knife blades
Standard blade holder
Fiber tip pen
Power cord
Serial interface cable (PC) and USB Cable (PC/Mac)
Quick start guide (English, French, German, Italian, Spanish and Dutch)
User's manual and drivers on CD-ROM
Summa Cutter Control™ software (for controlling cutter settings)
WinPlot™ (PC) and MacSign Cut (Mac) cutting programs

contact us...


Accessories
(All Summa S2 Class Vinyl Cutter Models):
NEW
7X Faster Processor
NEW
Ethernet Connection
NEW
USB Memory stick interface
NEW Colourful, more User Friendly Menu and Setup
OPOS™ X contour-cutting alignment system
Stand with adjustable front and rear media baskets
Media supply rollers with media end flanges
Media cutoff system
Automatic interface selection
Selectable origin
Variable knife-tip offset (0-1 mm / 0-0.04")
8 user-definable configurations
Autoload feature
Adjustable pinch roller pressure
Dual protection strips (cut and pounce)
Overcut feature (for easier weeding)
Flex-cut feature (for cutting completely through the media)
OPTiCUT™ and TurboCut™ performance enhancement modes
Vector look-ahead
Curve and arc smoothing
Diagnostic routines
NEW Option: Extra Pinch Wheels In-field Upgrade available

You absolutely can't beat Summa's NEW, lean, mean cutting machine! If you run a high production, professional shop; if you want to increase your cash flow with efficiency and ease; if you want a fast, dependable, trouble-free vinyl cutter that tackles any job; if you want incredible, long tracking without the hassle and waste of sprocket-feed; if you want to be able to make innovative, out-in-front promises to your clients and keep them, then you want the Summa S2 Class D Series cutter. It will never let you down. Combine that with SignEquip's legendary, unbeatable service - it's a win-win situation for you. What are you waiting for? Contact SignEquip now.

Need more info? We're as close as your email or telephone. We love to help you.  Our heart is with your business.  For one-step service we'll answer your questions, and you can place your order over the phone.
